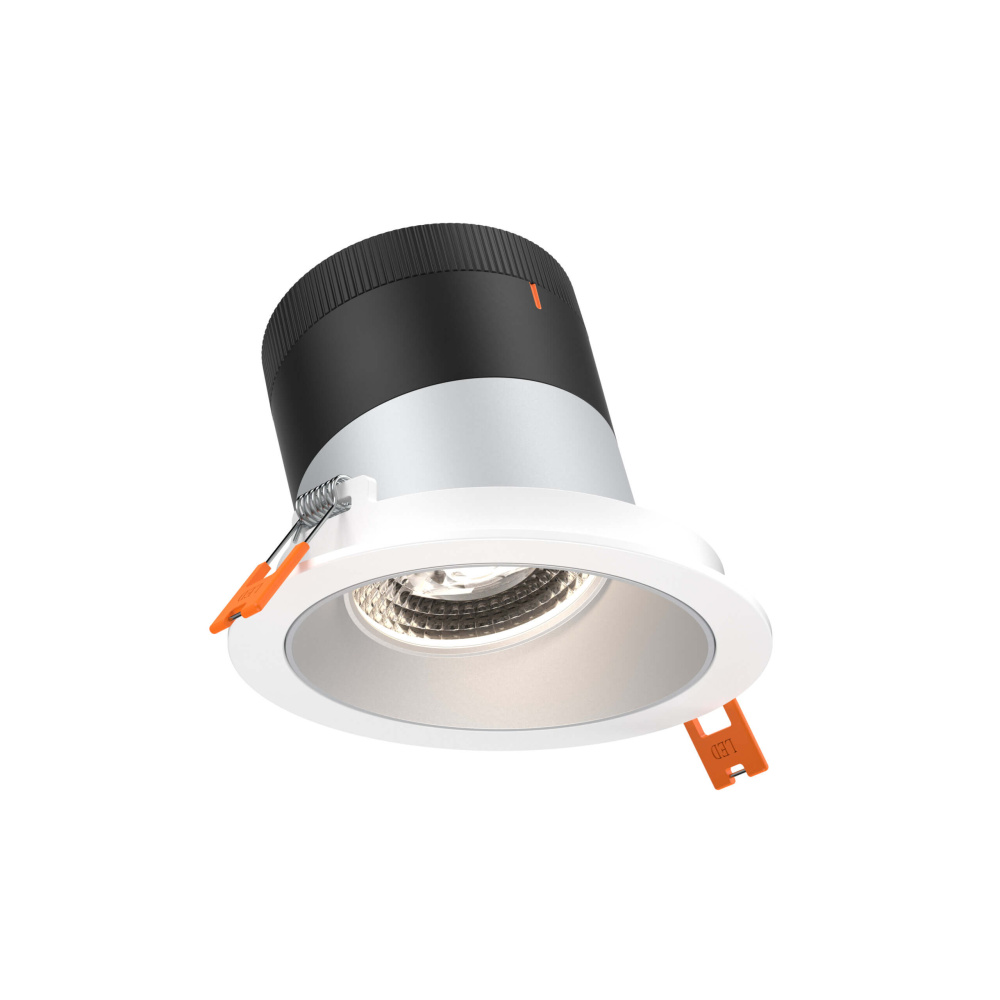

4in Modular Downlight, 5CCT, 60 degree Beam Angle, Slope Ceiling, Alzak, White Trim (RC04-CC-60-SLAZ-TWH)
A versatile recessed lighting solution available in three-, four-, and six-inch sizes, featuring customizable finishes, trims, lenses, and reflectors, with options for standard, sloped ceiling, and trimless installations, all with multi-voltage compatibility. Perfect for commercial or residential spaces. 288 possibilities!
Product Specification
Item #
RC04-CC-60-SLAZ-TWH
Dimensions
Height: 2.30"
Width: 3.83"
Length: 3.83"
Additional product details
Finish
Miscellaneous
Option
Energy Star
, Title 24
, Outdoor
, Wet Rated
Category
Recessed
Subcategory
Modular
Finish
Alzak
Option
Energy Star
, Outdoor
, Title 24
Family
Versa
Voltage
120 V/ 277 V/ 347 V
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
3.5
Ship Carton Length
12
Ship Carton Width
9.65
Ship Weight
2.5
Warranty
5 Years Limited
Weight
0.2
Air-Tight (ASTM E283--4)
Yes
Beam Angle
60
Bulb CRI
90
Country of Origin
China
Delivered Lumens
2200
Dimmer Type
Triac / ELV
Energy Star
Yes
IC Certification
Yes
Indoor
Yes
IP Rating
IP44
Lens Material
Glass
Location Rating
Wet Rated
Max Wattage
16 W/ 20 W/ 24 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Safety Rating
ETL Approved
Shipping Master Height
6.3
Shipping Master Length
21.5
Shipping Master Quantity
50
Shipping Master Weight
14.65
Shipping Master Width
21.5
Title 24
Yes
Wiring
Hardwired
Other Details:
- 20°, 35°, or 60° beam angles included
- Customizable trims and reflector shapes and colors
- Multi-watt output allows you to choose from three wattage settings for customizable brightness directly on the jbox
- Regressed, Slope ceiling and Trimless options
- Rotary dial CCT switch
